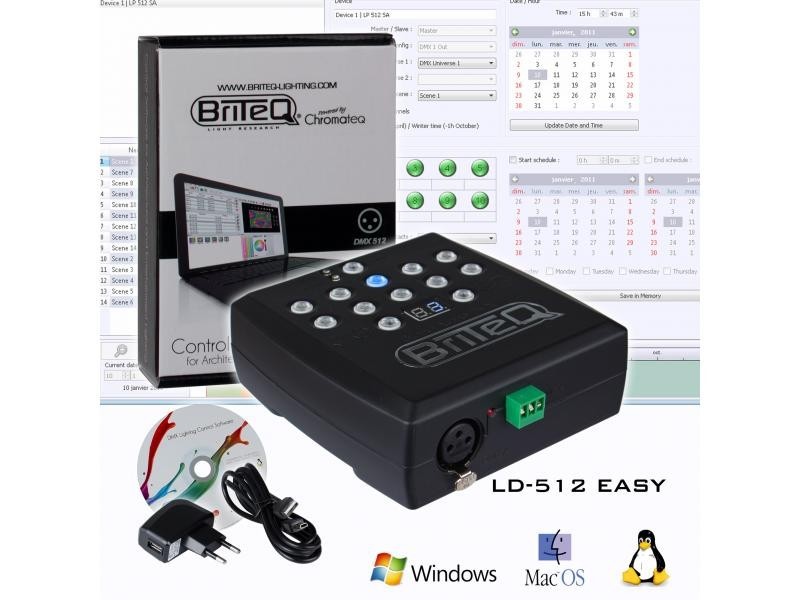

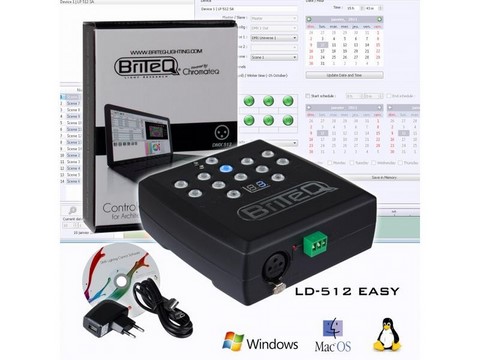

LD-512EASY


Description

512 Channel DMX interface
512 output channels when used with a computer
512 output channels when used standalone without computer (max 4000 steps)

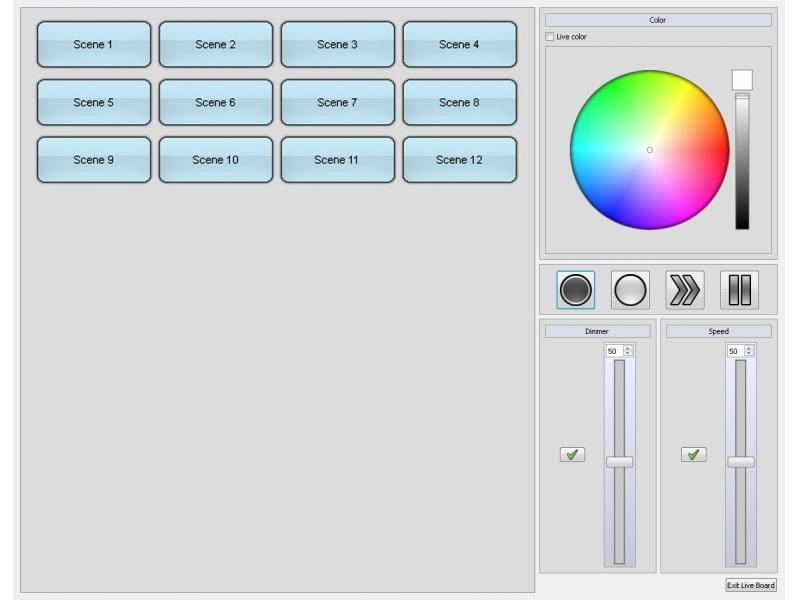

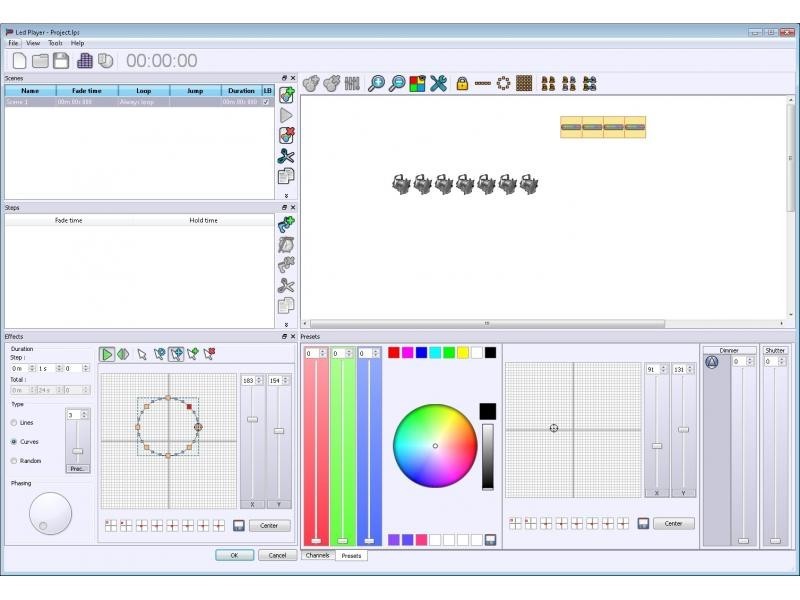

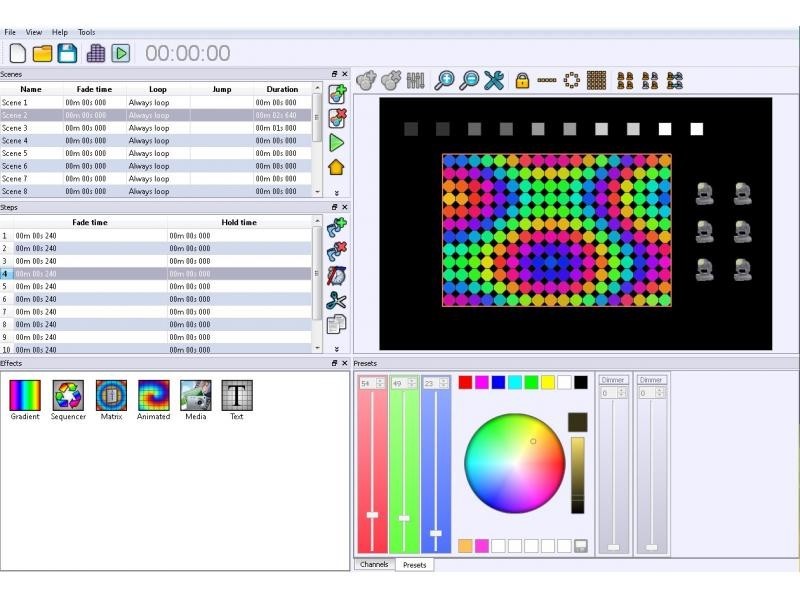

Works with the Chromateq Led Player and Chromateq Pro DMX software. (included)
Very practical for mobile or rental applications: program your shows via computer into the interface memory and use it in standalone with the integrated control buttons.
Perfect for fixed installations: all the programs can be created via computer and stored into the interface. Once this is done, you only have to press the buttons to activate your programs.
Functions and control in standalone mode:

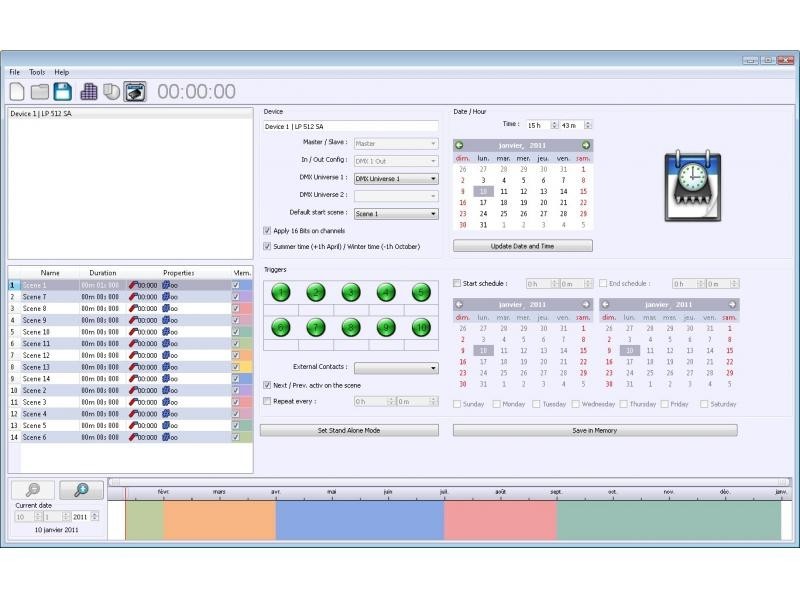

Automatic Real Time Clock triggering for different scenes (day, week, month, year)

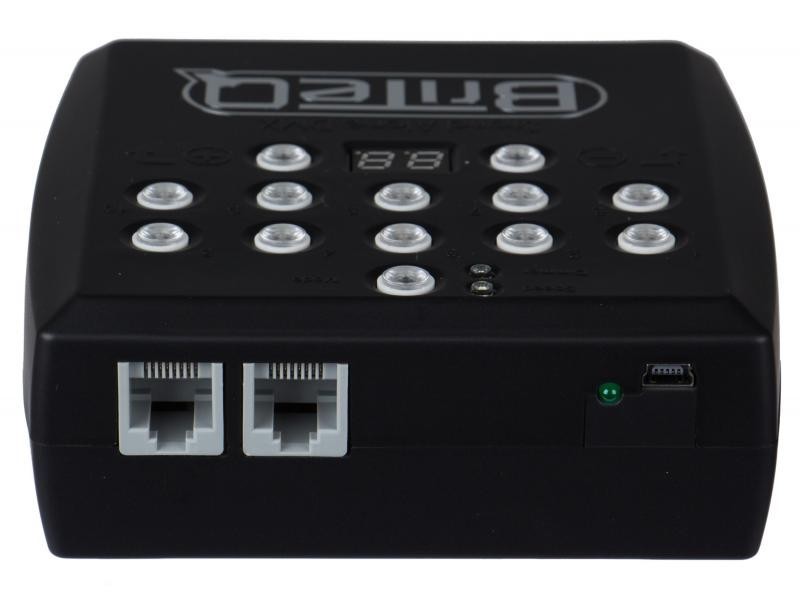

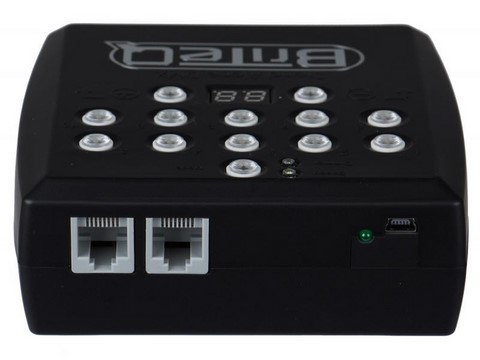

External Triggering via 15 contacts (4 wire mutiplexed RJ45)
10 switch buttons for direct triggering of your programmed scenes
Scene selection via the NEXT and PREVIOUS buttons
Set the Cross fade time between scenes
Speed and dimmer adjustment for each scene
Master/Slave mode for up to 16 interfaces connected together

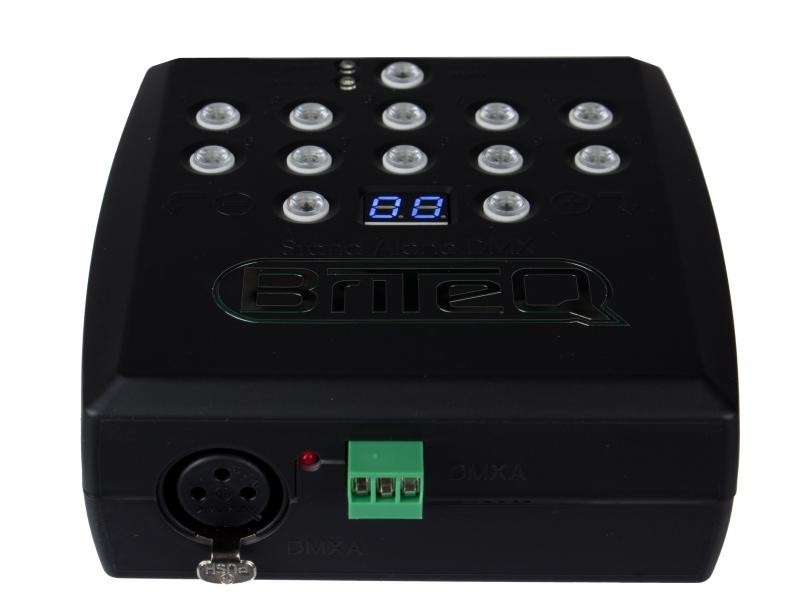

Original Neutrik® 3-pin XLR output connector
Extra terminal block for DMX in fixed installations
USB cable included
Comes with an external 5VDC power supply for the use in standalone mode
An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
For more information about the software: www.chromateq.com

Information Technique

Dimensions: 110 (W) x 120 (D) x 40mm (H)
